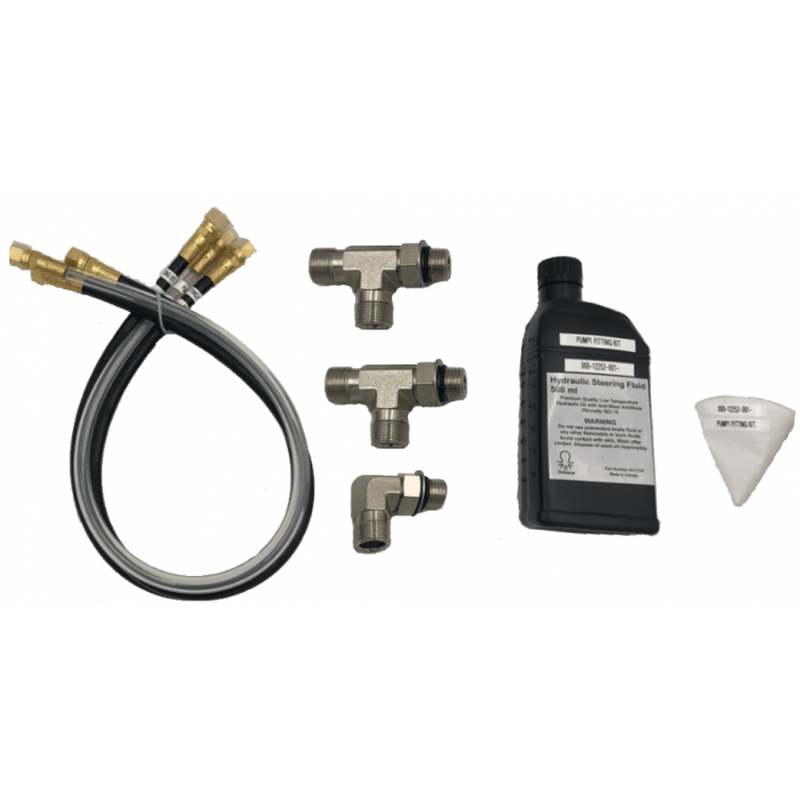

Autopilot ORB Hose Fitting Kit

for SIMRAD MKII Pumps 1, 2, 3, 4 & 5

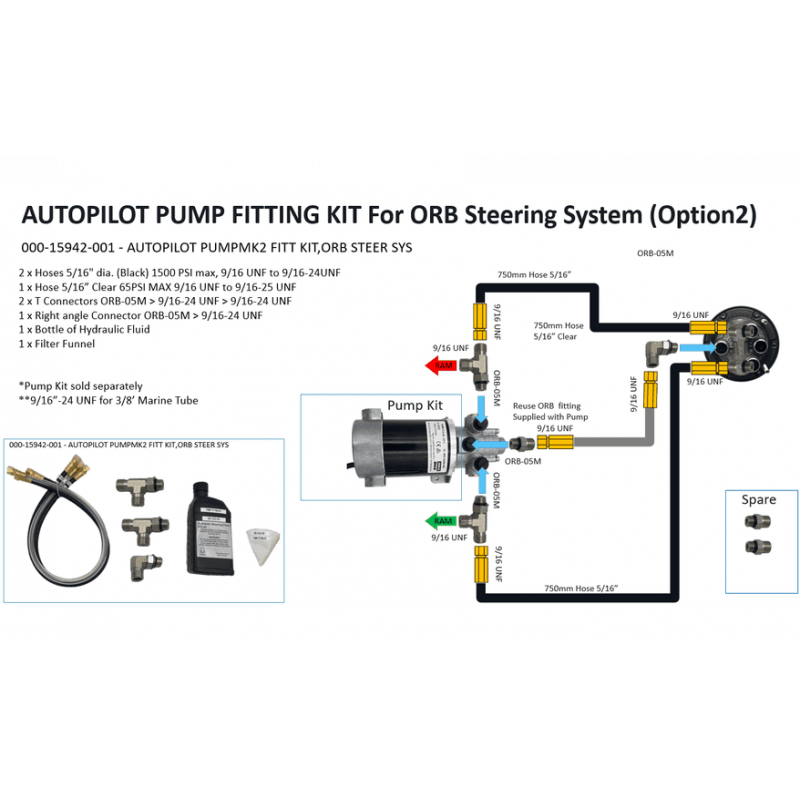

Fitted hose kit designed for simplified ORB system installation reducing the opportunity for faulty field terminated hydraulic hoses and incorrect installation layouts

2 x T Connectors ORB-05M > 9/16-24 UNF > 9/16-24 UNF
1 x Right angle connector ORB-05M > 9/16-24 UNF
2 x Hoses 5/16" dia. (Black) 1500 PSI max, 750 mm (29.5"), 9/16 UNF to 9/16-24 UNF
1 x Hose 5/16" dia. (Clear) 65 PSI max, 750 mm (29.5"), 9/16 UNF to 9/16-25 UNF
1 x Bottle of hydraulic fluid
1 x Filter funnel

Delivery is available, or you can opt for pickup from our showroom. Installation rates vary depending on the type of item being installed.
